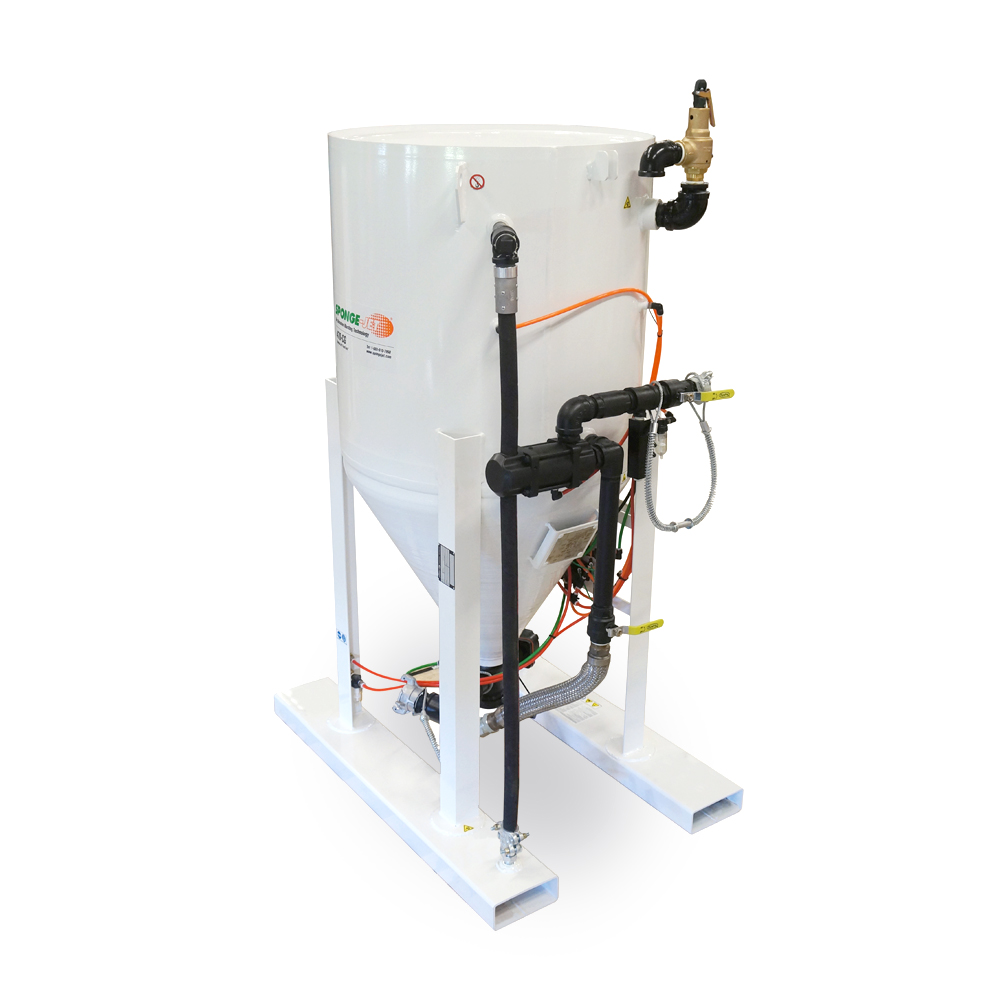

SPONGE-JET 470-CG Feed Unit™

Product Number
SJE-FE-470-CG-P
SPONGE-JET 470-CG Feed Unit™ with extended blasting time and minimum extra features. This basic but highly rated device is ideal where multiple units are required in a system with a minimum of extra features. Detail description
New

SPONGE-JET 470-CG Feed Unit™ with extended blasting time and minimum extra features. This basic but highly rated device is ideal where multiple units are required in a system with a minimum of extra features.

Features:

  • Internal mixing assembly keeps Sponge Media abrasives flowing reliably through the container
  • adjustable, pneumatically driven, screw dosing system
  • optimum media flow and maximum efficiency at all blast pressures
  • Integrated E-Stop and Deadman remote control system
  • standardised parts and maximum reliability thanks to the design
  • high quality, industry standard components
  • long, trouble-free operation, easy acquisition and replacement of spare parts
  • multilingual labels, user guides and online training tools
  • colour-coded pneumatic lines for easy troubleshooting
  • extended operation, permanently lubricated air motor
  • worm bearings minimise maintenance and wear

For more information on Sponge-Jet™ technology, please visit www.spongejet.com.

Manufacturer: Sponge-Jet
Product Name: 470-CG Feed Unit™
Weight: 518 kg (weight is without transport pallet, hoses and accessories)
Dimensions (length x width x height): 1 220 x 830 x 1 860 mm
Content: 470 litres
Pressure certification: 10 bars
Blasting time (without filling): 140 minutes (blasting time is estimated based on the use of a working mixture with a 9 mm nozzle)
Blasting hoses: 5 m, inner diameter 32 mm (1 ¼")
Nozzle type: SABER or WEV
Nozzle size: 9 - 18 mm
Nozzle holder: 50 mm or 1 ¼" in NPS
Launch system: Deadman handle with double hose
Air inlet coupling: 50 mm BOSS, 2 in 4 eyelet or Surelock
